First Steps

A short, 25 minutes guide to your first test case in Designer.

This is a direct continuation of the First Steps with the portal chapter. The section below shows you how to create and publish a test case in the designer.

Keep in mind - this chapter only shows a brief summary of how to work with the Designer. For more details refer to the Getting started chapter

Step 1 - Download Visual Studio and Designer

  • Download Visual Studio (Community Edition is enough) from the Microsoft website.

  • After VS is installed, install the extension by following these steps:

    • In Visual Studio go to Tools --> Extensions and Updates

    • Select Online extensions

    • Search for "testresults"

    • Select "Designer for" from the list and click the Download button

    • The extension will be installed automatically upon the next Visual Studio restart

    • You can verify the successful installation of the designer by accessing the Extension and Updates in Visual Studio and checking if you see the extension in the Installed section

Step 2 - Create a solution

  • Go to File-->New-->Project from the Top Menu

  • On the left hand side expand the Installed-->Visual C# node and select the node

  • Select the TestSolution

  • Enter the name of solution and press OK

Step 3 - Connect to your TRIO server

  • From the top menu (Visual Studio 2017) or from the Extensions--> menu (Visual Studio 2019) select the Connections tab.

  • In the Connections tab select Servers

  • Add a new server

  • Enter the server name and your credentials and confirm the action with the Add button

  • After adding the server your connections tab will look like this

Step 4 - Connect to your Customer and Project

  • Select the Projects tab

  • Select the desired Customer

  • Select the desired Project

  • After a successful selection the tab will look as follows

Step 5 - Download the Engine

  • Select the Engines tab

  • Select the Download button next to the latest engine version

  • After a successful download the tab will look as follows

Step 5 - Add a test case to your solution

  • Open the Solution Explorer

  • Right click on the solution (top node)

  • From the context menu select the New Test Case project option

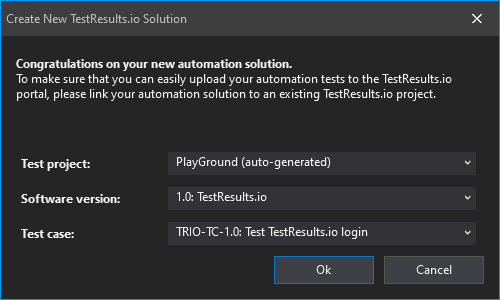

  • When prompted select the test case which has been added in the portal and afterwards select Add

  • The test case will be added to the solution. The solution explorer will look as follows:

Step 6 - Add a Test Environment

  • From the top menu (Visual Studio 2017) or from the Extensions--> menu (Visual Studio 2019) select the Environments tab.

  • Add a new Environment

  • Enter the Env. details i.e. name, address, credentials and the selected protocol

  • Once the test environment has been successfully added the tab will look as follows:

Step 7 - Take a picture of any control in the Test Environment

  • Double click on the added test env.

  • Once the Remote Viewer is opened switch to Capture mode

  • Using your mouse, mark a rectangle around any control visible in your test environment

  • Select Save Image on the right side of the Remote Viewer

  • Enter any name of for the taken image e.g. TestImage

Step 8 - Modify the test case

  • In the Solution Explorer, open the class representing the test case

  • Replace the content of the TestCase class as follows:

public bool Setup(ITester t)
return true;
TestInput = "First Test input",
ExpectedResults = "First Expected Result")]
public void Step1(ITester t)
t.Report.PassStep("First run");

Step 9 - Run the test case

  • Hit the F5 button

  • Observe the execution of the test case (clicking on the selected control) in the Remote Viewer

Step 10 - Generate and publish your test case container

  • Open the Solution Explorer

  • Right click on the test case project

  • From the context menu select the Generate Test Case test container option

  • From the context menu select the Publish newest test container option

Your test case has been published to the server and is now available for execution in the portal.
